Can someone check if im doing this right?

by with No Comment Chemistry

Answer

Newman Projections of Alkanes

Newman Projections of Alkanes

Concept Overview

Newman projections are a way to visualize the spatial arrangement of bonds around a particular carbon–carbon (C–C) bond in alkanes. This projection helps us understand conformational isomerism and torsional strain by looking down the C–C bond axis.

Problem Statement

We are given a dibromoalkane, and we are asked to draw Newman projections of the molecule by viewing it along the C1–C2 bond from two different directions:

  • View (a): Looking from carbon C1 to C2
  • View (b): Looking from carbon C2 to C1

Step-by-Step Explanation

Step 1: Analyze the Structure

The molecule contains two carbon atoms:

  • C1 is bonded to Br, H, and CH₃
  • C2 is bonded to CH₃, H, and Br

Each view gives a different perspective on the relative positions of the substituents.

Step 2: Newman Projection for View (a) – Looking from C1 to C2

  • Front carbon (C1) is a dot.
  • Back carbon (C2) is a circle.
  • Use the wedge-dash structure to assign positions:
    • Wedge (out of plane) → right
    • Dash (into plane) → left
    • Normal bond (in plane) → down
  • Back carbon substituents are placed symmetrically around the circle.

Result:

  • C1 (dot): CH₃ (down), H (left), Br (right)
  • C2 (circle): CH₃ (up), H (left), Br (right)

Step 3: Newman Projection for View (b) – Looking from C2 to C1

  • Front carbon (C2) is a dot.
  • Back carbon (C1) is a circle.
  • Orientations reverse due to the opposite direction of view:
    • Wedge → right
    • Dash → left
    • Normal → down

Result:

  • C2 (dot): CH₃ (down), H (left), Br (right)
  • C1 (circle): CH₃ (up), H (left), Br (right)

Conclusion

The Newman projections for both viewing directions — C1 → C2 and C2 → C1 — show different arrangements due to the perspective, although the molecular structure remains the same. This demonstrates how Newman projections help visualize conformational changes and spatial orientations in organic molecules.

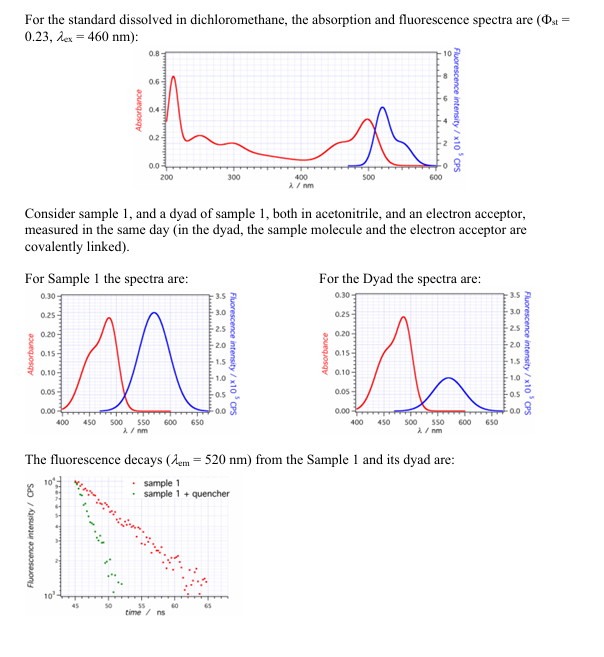

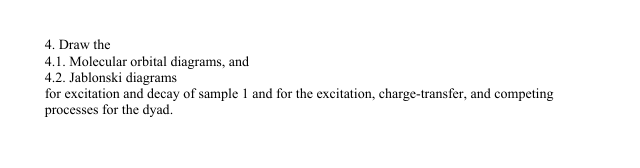

For the standard dissolved in dichloromethane, the absorption and fluorescence spectra are 0.23,λex =460∩.Consider sample 1, and a dyad of

by with No Comment Chemistry

Answer

Photophysical Properties and Diagrams

1. Photophysical Properties of Molecules

Photophysical properties describe how molecules interact with light by absorbing, emitting, and dissipating energy. These interactions are key in spectroscopy, optoelectronics, and biological imaging.

Key Processes:

  • Absorption: Photon promotes electron to excited state.
  • Fluorescence: Fast emission from singlet excited state (S₁ → S₀).
  • Phosphorescence: Slow emission from triplet state (T₁ → S₀).
  • Internal Conversion: Non-radiative transition between states of same spin.
  • Intersystem Crossing: Transition between singlet and triplet states.
  • Non-Radiative Decay: Energy lost as heat without light emission.

Quantitative Parameters:

  • Quantum Yield (Φ): Efficiency of photon emission.
  • Lifetime (τ): Duration molecule remains excited.
  • Stokes Shift: Energy/wavelength difference between absorption and emission maxima.

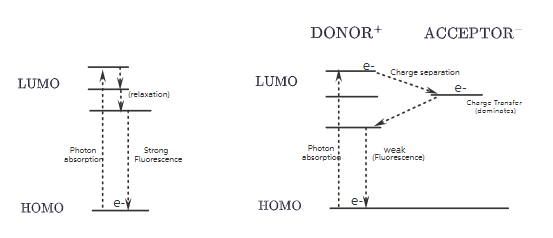

2. Molecular Orbital (MO) Diagrams

Sample 1 (Without Quencher)

  • Ground State: Electron in HOMO.
  • Excitation: Electron promoted to LUMO.
  • Fluorescence: Electron returns to HOMO, emitting a photon.

Result: Strong fluorescence.

Dyad (Sample 1 + Covalently Linked Quencher)

  • Same ground state as Sample 1.
  • After excitation, electron transfers from donor’s LUMO to acceptor’s LUMO.
  • Forms charge-separated state: Donor⁺ — Acceptor⁻.
  • Competes with fluorescence, reducing its intensity and lifetime.

Result: Weaker fluorescence due to charge transfer dominance.

3. Jablonski Diagrams

Sample 1

  • Excitation: S₀ → S₁ upon light absorption.
  • Relaxation:
    • Vibrational relaxation to S₁ minimum.
    • Fluorescence: S₁ → S₀ radiative decay.

Result: Efficient fluorescence with no competing pathways.

Dyad

  • Excitation: Donor excited from S₀ to S₁.
  • Competing Processes:
    • Charge Transfer (CT) from donor to acceptor suppresses fluorescence.
    • Fluorescence partially occurs but with reduced intensity and faster decay.
  • Possible Transitions:
    • S₁ → CT state (non-radiative)
    • CT → S₀ (slow recombination or quenching)

Result: Partially suppressed fluorescence with faster decay.

4. Conclusion

Without a quencher, molecules show strong fluorescence due to direct radiative relaxation. In the dyad system, fluorescence is diminished because of electron transfer to the acceptor, forming a charge-separated state. These principles are critical in designing photophysical systems for technologies like sensors, photovoltaics, and imaging.

Glyceraldehyde is an aldose monosaccharide. The Fischerprojection of D-glyceraldehyde is shown. Modify thestructure on the right to show

by with No Comment Chemistry

Answer

D-Glyceraldehyde Fischer to 3D Conversion

D-Glyceraldehyde: Fischer Projection to 3D Representation

Step 1: Understanding the Fischer Projection

The Fischer projection of an aldose monosaccharide is drawn by placing the aldehyde group (CHO) at the top and the CH₂OH group at the bottom.

In D-glyceraldehyde, the hydroxyl group (OH) is on the right side of the chiral carbon in the Fischer projection.

Step 2: Converting to a 3D Structure (Wedge and Dash Bonds)

  • Horizontal bonds (OH and H): Represented as wedge bonds (coming out of the plane).
  • Vertical bonds (CHO and CH₂OH): Represented as dash bonds (going behind the plane).

This method ensures that the stereochemistry at the chiral center remains unchanged.

Explanation Summary

Using the above method, we can correctly convert the Fischer Projection using wedge and dash bonds without changing the configuration at the chiral carbon.

Correct 3D Structure of D-Glyceraldehyde

3D Structure of D-Glyceraldehyde

– CHO and CH₂OH groups are shown as dash bonds.
– OH and H are shown as wedge bonds.
– This reflects the D-configuration of glyceraldehyde in three dimensions.

Conclusion

This method provides a reliable way to convert a Fischer projection to a wedge-and-dash 3D structure, preserving stereochemistry at the chiral center. The final drawing accurately represents D-glyceraldehyde.

Phosphoric acid ionizes in three steps with theirionization constant values 1 2 K ,K a a and 3 Ka ,respectively, while K is the overall ionizationconstant. Which of the following statements aretrue

by with No Comment Chemistry

Answer

Phosphoric Acid Dissociation

Phosphoric Acid Dissociation and Acid Strength

Stepwise Ionization of H3PO4:

H3PO4 ⇌ H2PO4−  (Ka1)

H2PO4− ⇌ HPO42− + H+  (Ka2)

HPO42− ⇌ PO43− + H+  (Ka3)

Overall Equilibrium Constant:

K = Ka1 × Ka2 × Ka3

log K = log Ka1 + log Ka2 + log Ka3

Acid Strength Comparison:

(B) Yes, H3PO4 is a stronger acid than both H2PO4− and HPO42−, as acidic strength decreases with successive loss of hydrogen. H3PO4 has three hydrogen ions available for donation.

Ka Value Relationship:

(C) In H3PO4, Ka1 > Ka2 > Ka3 because it becomes increasingly difficult to remove a proton from a negatively charged ion.

Conclusion: Statements A, B, and C are all correct.

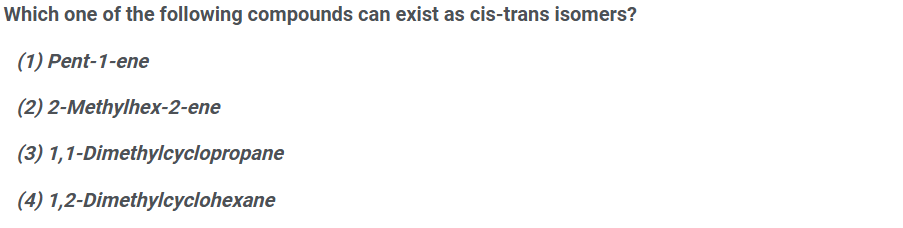

Which one of the following compounds can exist ascis-trans isomers?(1) Pent-1-ene(2) 2-Methylhex-2-ene(3) 1,1-Dimethylcyclopropane(4) 1.2-Dimethylcyclohexane

by with No Comment Chemistry

Answer

Geometric (Cis-Trans) Isomerism

Geometric (Cis-Trans) Isomerism

Geometric isomerism, also known as cis-trans isomerism, occurs due to restricted rotation around a double bond or within a ring structure. For this type of isomerism to exist, two conditions must be met:

  • There must be restricted rotation (e.g., a double bond or ring system).
  • Each of the atoms involved must have two different substituents.

Pent-1-ene and 2-methylhex-2-ene do not show geometric isomerism because they possess identical groups on one of the double-bonded carbon atoms.

1,1-Dimethylcyclopropane also cannot exhibit cis-trans isomerism, as both methyl groups are on the same carbon atom.

In 1,2-dimethylcyclohexane, the methyl groups on C-1 and C-2 can occupy either the same face (cis) or opposite faces (trans) of the ring, resulting in distinct geometric isomers.

The correct order of the wavelength of lightabsorbed by the following complexes is,A. [Co(NH3)6]3+ B. [Co(CN)6]3–C. [Cu(H2O)4]2+ D. [Ti(H2O)6]3+Choose the correct answer from the options givenbelow:

by with No Comment Chemistry

Answer

Crystal Field Splitting Explanation

Crystal Field Splitting (Δ0)

The crystal field splitting energy, Δ0, depends upon:

  • The field produced by the ligand
  • The charge on the metal ion

Ligand Field Strength Order (Increasing Δ0):

H2O < NH3 < CN−

A higher charge on the metal ion leads to greater splitting and a higher Δ0.

Metal Ion Order (Increasing Δ0):

Cu2+ < Ti3+ < Co3+

Relationship Between Absorbed Wavelength and Δ0:

λabsorbed ∝ 1 / Δ0

Sequence of Wavelengths (λ):

B < A < D < C

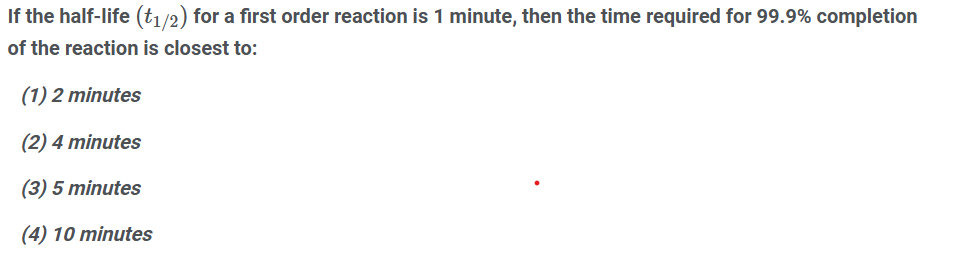

If the half-life (t1/2) for a first order reaction is1 minute, then the time required for 99.9%completion of the reaction is closet to:(1) 2 minutes (2) 4 minutes(3) 5 minutes (4) 10 minutes

by with No Comment Chemistry

Answer

First Order Reaction Time Calculation

First Order Reaction Time Calculation

Kt = 2.303 log (a / (a – x))
(0.693 / t1/2) × t = 2.303 log (100 / (100 – 99.9))
(0.693 / 1) × t = 2.303 log (100 / 0.1)
t = (2.303 / 0.693) log(10³)
t = (2.303 / 0.693) × 3 log(10)
t = 10 min

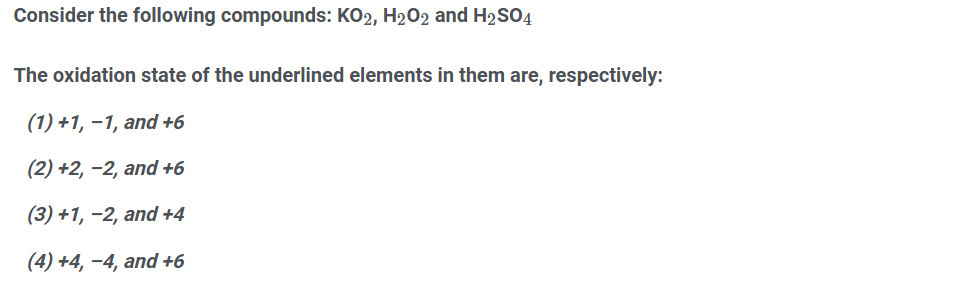

Consider the following compounds:KO2, H2O2 and H2SO4The oxidation states of the underlined elements inthem are, respectively

by with No Comment Chemistry

Answer

Oxidation States in Compounds

Oxidation States in Compounds

In KO2 (potassium superoxide), the superoxide ion (O2–) carries an overall –1 charge.

Since potassium (K) forms a +1 oxidation state, it balances the charge of the superoxide ion.

In hydrogen peroxide (H2O2), the compound contains a peroxide linkage (O22–), where each oxygen atom has an oxidation state of –1 instead of the usual –2.

In sulfuric acid (H2SO4), the oxidation state of sulfur is determined by solving the equation for a neutral molecule:

2(+1) + S + 4(–2) = 0

Solving gives: 2 + S – 8 = 0 ⇒ S = +6

So, sulfur has an oxidation state of +6 in H2SO4.

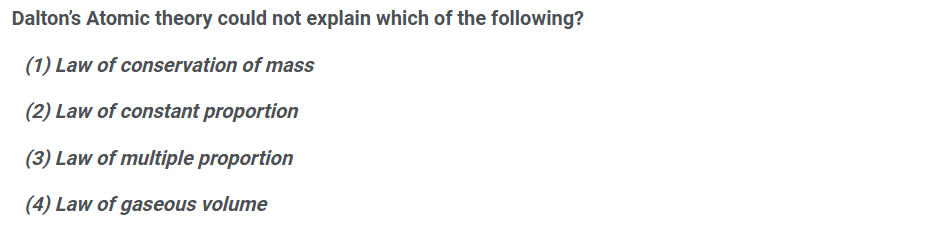

Dalton’s Atomic theory could not explain which ofthe following?(1) Law of conservation of mass(2) Law of constant proportion(3) Law of multiple proportion(4) Law of gaseous volume

by with No Comment Chemistry

Answer

Dalton’s Atomic Theory

Dalton’s Atomic Theory

Dalton’s theory successfully explained the laws of chemical combinations, such as:

  • Law of Conservation of Mass
  • Law of Definite Proportions
  • Law of Multiple Proportions

However, Dalton’s theory could not explain the laws of gaseous volumes, such as Gay-Lussac’s Law, which deals with the simple volume ratios of gases in chemical reactions.

This limitation later led to the development of Avogadro’s hypothesis, which more accurately described the behavior of gases.

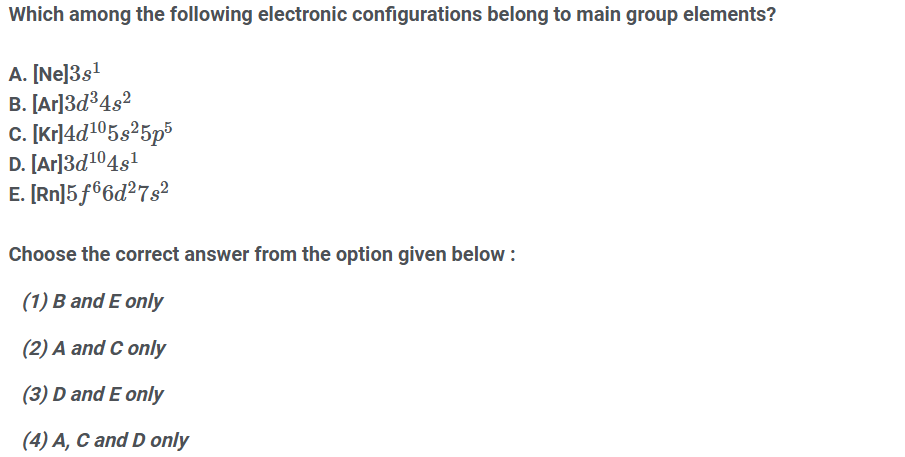

Which among the following electronic configurations belong to main group elements?A. [Ne]3s1 B. [Ar]3d34s2C. [Kr]4d105s25p5 D. [Ar]3d104s1E. [Rn]5f06d27s2Choose the correct answer from the options givenbelow:

by with No Comment Chemistry

Answer

Main Group Electron Configurations

Main group = elements whose valence shell involves only s or p subshells (Groups 1–2, 13–18).

  • Configuration A ([Ne] 3s¹) corresponds to Na, an s-block metal.
  • Configuration C ([Kr] 4d10 5s2 5p5) is I (iodine), a p-block halogen.

Configurations B and D possess 3d electrons, and E (Th) has 6d/5f involvement — so none are main-group.

Therefore, the only main-group configurations listed are A and C, making Option 2 the correct choice.
